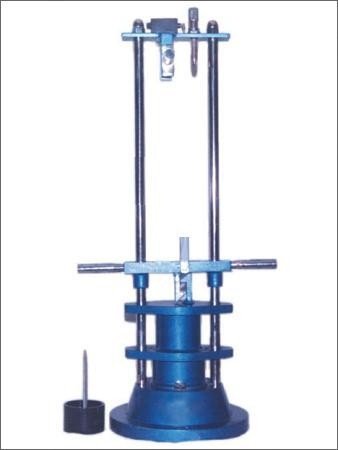

Aggregate Impact Testing Machine

Description

Specification:-

• Protected against corrosion.
• Power: manual
• Impact hammer weight:13.75kg
• Impact cup:102x50mm
• Height of the fall:380
• Hammer falls freely to the base and is removable for emptying.

Features:-

• Supplied complete with metal measures 75mm dia x 50mm high (for specimen preparation) and tamping rod 230mm long x 10mm dia.
• The hammer falls freely to the base and is removable for emptying.
• The hammer is provided with a locking arrangement.
• The hammer of weight 13.75 ±0.25 kg can be raised to fall freely down the vertical guides.
• The height of fall can be adjusted through 380 ± 5mm.
• The instrument consists of a circular base with two vertical guides.
