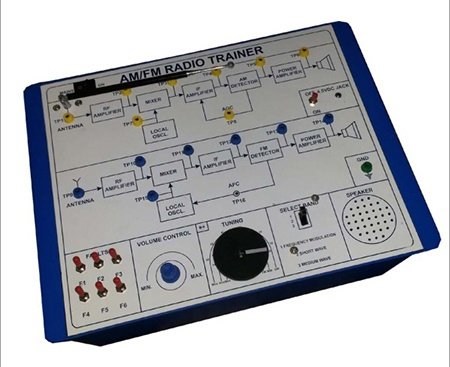

AM/FM RADIO RECEIVER

Description

• Item : AM/FM Radio Reciever
• Item Code : ATEE211
• Make / Brand : ATICO
• Country of Origin : INDIA

AM Receiver :-

• Construction : Superheterodyne
• AM Frequency Band : 530 KHz / 1650 KHz
• Local Oscillator Freq. Range : 980 KHz to 2.060 MHz
• Intermediate Frequency (IF) : 455 KHz
• Input Circuits : RF amplifier, Mixer, Local oscillator, Beat frequency oscillator, IF amplifier 1,

IF amplifier 2, Automatic Gain Control

• AM Detectors : Diode detector (for DSB), Product detector (for SSB)

FM Receiver :-

• Construction : Superheterodyne
• FM Frequency Band : 88 MHz to 108 MHz
• Tuning Range : 96 MHz to 120 MHz
• IF Frequency : 7 MHz
• Input Circuit : RF amplifier, Mixer, Local oscillator, IF amplifier 1, IF amplifier 2, FM Detector,

Automatic Frequency Control

• Warranty Period : 1 Year with Services
