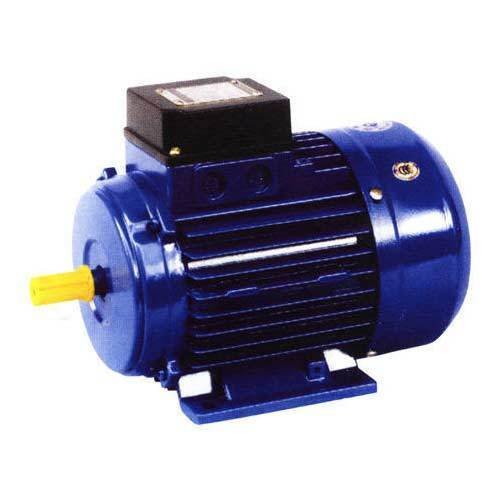

Fractional HP Motors Fractional Horsepower Motors Program

Description

Fractional HP Motors Fractional Horsepower Motors Program

Power and Metering

To satisfactorily perform the required experiments, the following power should be available:

•  Fixed 120V AC 1 2-wire 10A

• Fixed 208/120V AC 3 4-wire, 10A

• Variable 0-240/140V AC 3 4-wire, 9A

• Variable 0-150V DC, 1.0A, isolated,1% RMS

• Variable 0-125V DC, 5.0A, isolated, 1% RM

The following meters should also be avail- able:

• DC Voltmeter; 0-75/150V (2)

• DC Ammeter; 0-0.5/1.0/2.5/5.0A (2)

• AC Voltmeter; 0-150/300V

• AC Ammeter; 0-0.5/2/4/8A (2)

• AC Wattmeter; 0-150/300/600/1200W (2)
