Description
Specification
Plan PL 10x, 20x, S40x IOS infinity corrected objectives
Pair EWF 10x/22 mm eyepieces

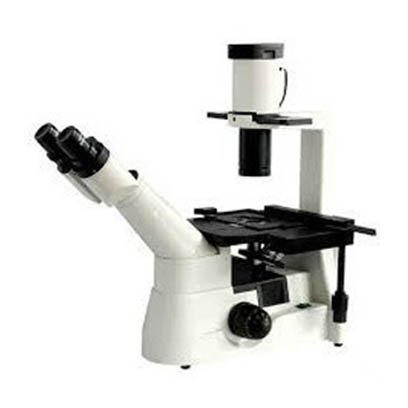

Trinocular head, 45° inclined tubes, Interpupillary distance 54-75 mm
Diopter adjustment on left eyepiece
Reversed quintuple revolving nosepiece on ball-bearings
250 x 230 mm stage
N.A. 0.30 condenser with iris diaphragm and filter holder, working distance 72 mm
Transmitted 5W LED, intensity adjustable with internal power supply 100-240 V (CE)
Supplied with power cord and aluminium box
Complete with
Plan LWD 4x/0.13 IOS objective, corrected for 1.2 mm
1.3 MP digital USB-2 camera with 1/3 inch CMOS sensor
