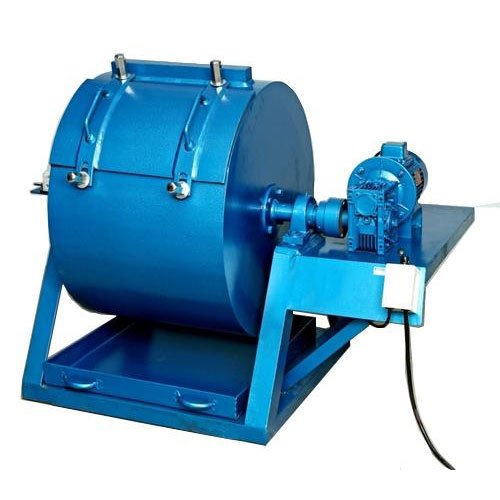

Los Angeles Abrasion Test Machine

Description

Los Angeles Abrasion Test Machine

Features

• The Los Angeles Abrasion Test Machine Is Used As Quality Control Tool For Aggregates,Including Crushed Rock, Gravel And Slag
• The Testing Method Determines The Degradation When Subjected To Abrasion, Attrition, Impact And Grinding
• Heavy Steel Cylinder And Base Frame
• Dust Proof Cover Plate
• The Machine Comply With ASTM C131, EN1097-2, AASHTO T-96 International Standard

Specifications

• Diameter Length : 710 X 510 Mm
• Drum Rotation Speed : 30 ~ 33 Rpm
• Counter : 5 Digits, Adjustable, Automatic Shut Off, Push Button Reset & Adjustment
• Steel Balls : Ø48 Mm
• Qty. Of Steel Balls : 12
• Steel Tray For Specimen Unloading
• Power Supply : 220V AC, 50/60Hz, Single Phase
