Description

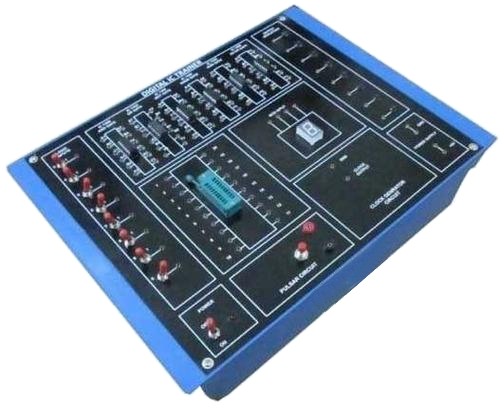

- Item : Digital IC Trainer
- Item Code : ATEE286
- Make / Brand : ATICO
- Country of Origin : INDIA
- System : 20-pin ZIF socket and LEDs to observe output logic states
- Control Mechanism : Switches to provide Logic 0 and 1 inputs with indication
- Manual Clock : Provided to observe counter operation
- Logics Gates : NOT, OR, AND, NOR, NAND and EX-OR
NAND and NOR gates as Universal Logic Gates
De-Morgan’s theorem I & II and Boolean Equation
Half & full Adder and Half & full sub-tractor
Basic flip-flops like RS, JK, D, MS-JK and T
Ripple and Synchronous Binary Counter
4-bit Ring Counter and Decade/BCD Counter
9-bit Parity Generator / Checker
Universal Shift Register, Multiplexer and De-multiplexer
- Power Source : Built-in Regulated Power Supply
- Accessories Included : Connecting Cables, Power Cord and Instruction Manual
- Warranty Period : 1 Year with Services
